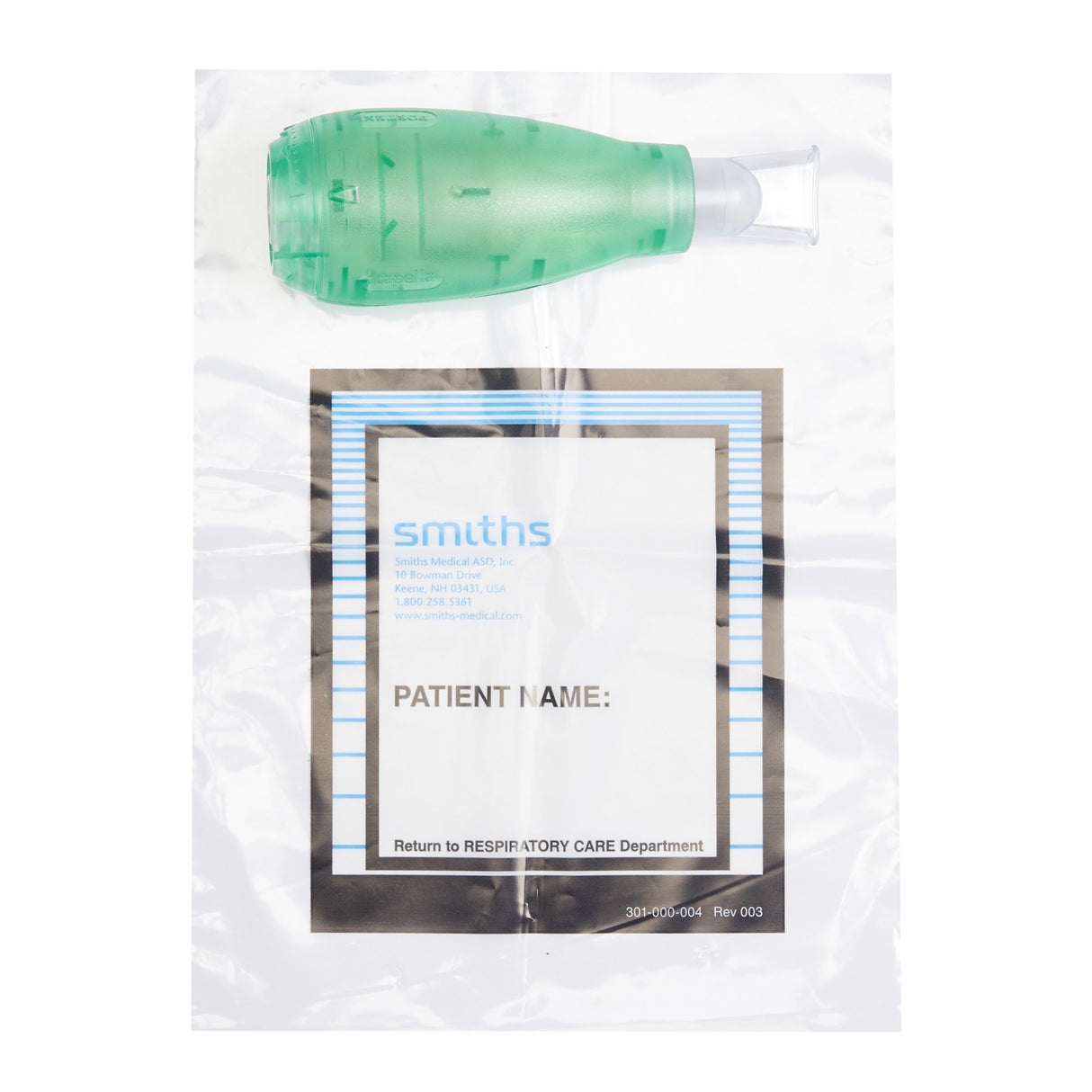

Vibratory PEP Therapy System Acapella Adult 15 lpm

Acapella Vibratory PEP Therapy System Features

• Allows inhalation and exhalation without removing from mouth
• Prolongs expiratory airflow to increase removal of secretions
• Allows use with mask or mouthpiece attachment
• Allows use with inline nebulizer when fitted with tee adapter
• Color-coded units help customize treatment for each patient based on their clinical needs
• Frequency and flow resistance of Acapella breathing device can be adjusted by turning an adjustment dial
• Can be used in any position - patient is free to sit, stand or recline
• Easier to tolerate than Chest Physical Therapy (CPT)
• Takes less than half the time of conventional CPT sessions
• Acapella Blue-DM <15 lpm for 3 seconds
• Acapella Green-DH >15 lpm for 3 seconds
• 22mm OD ambient end
• 22mm OD patient end
• Patented rocker mechanism
• Single patient use device

Benefits of Smiths Medical Acapella Vibratory PEP Therapy System

• Allows inhalation and exhalation without removing from mouth
• Prolongs expiratory airflow to increase removal of secretions
• Allows use with mask or mouthpiece attachment
• Allows use with inline nebulizer when fitted with tee adapter
• Accommodates virtually any patient’s lung capacity
• Can be used in any position - patient is free to sit, stand or recline

Acapella Therapy System consists of:

1. Removable mouthpiece

Acapella Vibratory PEP Device with 22 mm male fittings including:A. Expiratory resistance/frequency adjustment dialB. One-way inspiratory valveC. Patient end which adapts to a mouthpiece, or maskD. Mouthpiece (detachable)

How does the Acapella Device work?

Acapella by Smiths Medical directs exhaled air through an opening which is periodically closed by a pivoting cone. As air passes through the opening, the cone alternately closes and opens the air flow path. The result is a vibrating pressure waveform. For most users, frequencies between 0-30 Hz are obtained while maintaining positive pressure throughout the exhalation process. This is referred to as vibratory PEP therapy.

Through adjusting the dial, the frequency of the vibrating pressure-waves and the resistance of the opening changes.
